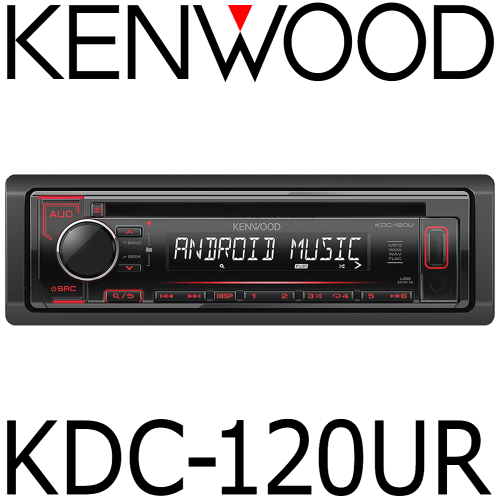

CD-Receiver with Front USB & AUX Input
Key Features
White Display & Red Key Illumination
13 Digits Vertical Alignment LCD
MP3 & WMA playback (CD/USB)
WAV & flac(48kHz/16bit)files playback (USB)
3 Band Parametric Equalizer
1 RCA Preouts (2,5V)
Front AUX input & Illuminated USB with dust cover
Android Music Playback
1A Charge for Smartphone
Less the 1mA Dark Current Consumption
General Features
DIN Size:1 DIN
Detachable Faceplate
Key Illumination:Red LED
Rotary Encoder & Control Knob
Accent key:Audio
Back-up Memory:Menu Settings
Attenuator with Smooth Volume Return
Touch Sensor Tone
Digital Clock (24H)
All-off Select (20/40/60 minutes)
Built-in Connector:Mitsumi, 16 pin
USB interface x 1
Firmware upgreadable
Display Features
Display Type:Liquid Crystal Display (LCD)
Display Layout:13 characters/digits
Vertical Aligment Liquid Crystal Display
Display Illumination:White LED
Dimmer Control:Manual / Set by Timer
Brightness control:Display (32 steps)
Demo Mode
Menu text in selectable language:English/Spanish/Russian
TAG Language Display:English, Spanish, Russian & Greek
Cosmetics features
Dress plate:Black Injection
Volume & operation knob or wheel:Chrome Finished Ring
Preset key finish:Piano Black
Escutcheon finish:Piano Black
Triangle Illumination:Red LED
Key illumination:Red LED
Tuner Features
Station Select:Manual / Preset
FM Reception
AM (MW/LW) Reception
Tuner Presets (FM/AM):24 Presets (18FM / 6AM)
Preset memory w/o back-up power
Mixed preset memory (FM & AM):6 presets
Up/Down Seek/Scan
Automatic Memory Entry (AME)
FM Stereo / Mono Selector
Radio Data System
Radio Text Plus
Traffic Information
Local search
AF Regional:Selectable: AF/AF Reg/OFF
Auto TP search
Enhanced Other Networks Function (EON)
Program Type Function (PTY)
CE_Playable Audio file
MP3 files are playable:CD/USB
WMA (.wma) files are playable:CD/USB
WAV (.wav) files are playable:USB
FLAC files are playable:USB
CD Features
CD-R/RW Compatible
CD Text with special Character Support:English, Spanish, Russian & Greek
D.A.C. processing:24bit
0 bit Mute
Random Function:DISC Random/Random OFF
Repeat Function:Track Repeat/All Repeat
USB Features
USB terminal, Front with dust cover
USB Type:2.0 High speed
Drive Change
Android USB Mass Storage Class (MSC)
Android Open Accessory support (AOA):V 2.0
Repeat/Scan/Random search
Repeat / Random Play
Direct search
Resume play
Time code display
1A Charge Capability for Smartphone.
Audio Features
Maximum Output Power:50W x 4
MOSFET Power IC
Auxiliary Type:Mini-jack, front panel
Pre-out:1 RCA
Pre-out Output Level:2.5V
Preout Rear / Subwoofer Switchable
Subwoofer Reference Level Adj.
Tone Control / Easy EQ:3-Band, 8 Presets
Balance/Fader/Loudness Control
Bass Boost Circuit:Off/+1/+2/+3/+4/+5
Att.(-20dB) with smooth Volume Return
System Q:Preset EQ
Parametric Equalizer + Presets:3-Bands Parametric Equalizer with 8 Presets.
Low-pass Filter
Speaker Size Control, Off/10cm/13cm/16cm/6x9inch
Kenwood Sound Reconstruction
Drive EQ
Connectivity
Front USB & AUX Input
OEM Wired Remote Control ready
DC-Cord:Mitsumi to ISO
Power Control (P.CON) wire
Amplifier pre-out:1 RCA: Rear/Subwoofer (selectable)
FM Antenna Input:
Tuner Specifications
FM range: 87.5Mhz – 108MHz (50Khz step)
FM Usable Sensitivity:0.71μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity:2μV/75ohm (S/N 46dBf)
FM Frequency Response:30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono):64dB
FM Stereo Separation (1kHz):40dB
MW range: 531kHz – 1611kHz (9kHz step)
MW Usable Sensitivity:28.2μV
LW range: 153kHz – 279kHz (9kHz step)
LW Usable Sensitivity:50μV
Codec Specs
MP3 Format:MPEG 1/2 Audio Layer 3-Files
WMA Format:in accordance with Windows Media Audio
WAV Format:RIFF waveform Audio Format (only for LinearPCM)
FLAC Format:FLAC files (up to 48kHz/16bit)
CD Specifications
Laser Diode:GaAIAs
Digital Filter(D/A):8 Times Over Sampling
Digital/Analogue Converter:16 Bit
Wow & Flutter:Below Measurable Limit
Frequency Response:20Hz ~ 20kHz (±1dB)
Total Harmonic Distortion:0.01% (1kHz)
Signal to Noise Ratio:105dB (1kHz)
Dynamic Range:90dB
Channel Separation:85dB
MP3 Decoder:Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder:Compliant with Windows Media Audio
USB Specifications
USB Version compatibility:USB 2.0 High Speed
File System:FAT 32/16/12
Maximum Supply current:1500mA
D/A Converter:16 bit
MP3 Decode:Compliant with MPEG-1/2 Audio Layer-3
WMA Decode:Compliant with Windows Media Audio
WAV Decode:Linear – PCM Files
flac Decode:FLAC files up to 48kHz/16bit
Audio Specifications
Maximum Power: 50W x 4
Output Power (DIN45324, +B=14.4v): 22W x 4
Preout Level: 2500mV / 10kOhm,
Preout Impedance: ≤ 600Ohm
Speaker Impedance: 4Ohm & 8Ohm
AUX Frequency Response: 20Hz – 20kHz (±1dB)
AUX Maximum Input Voltage: 1000mV
AUX Input Impedance: 30kOhm
General Specifications
Operating voltage: 14.4V (10.5 to 16V Allowable)
Maximum Current Consumption: 10A
Dark Current Consumption: Below 1mA
Dimensions (WxHxD): 182 x 53 x 158mm
Weight: 1300 gr.
Operation Temperature Range:-10°C ~ 60°C
